Headstay systems

Headstay Systems

Manual

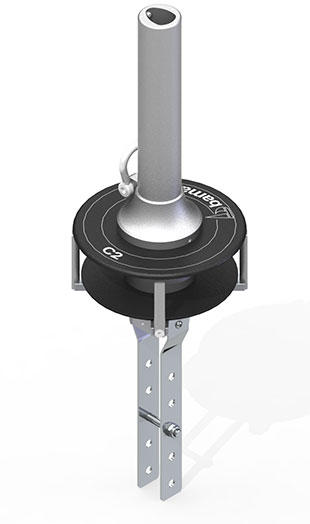

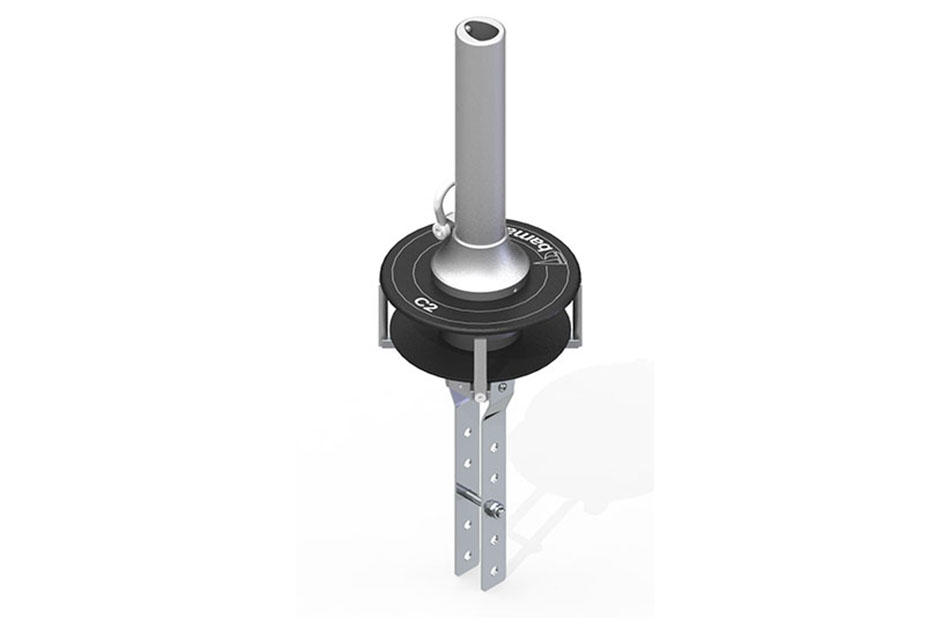

Bamar

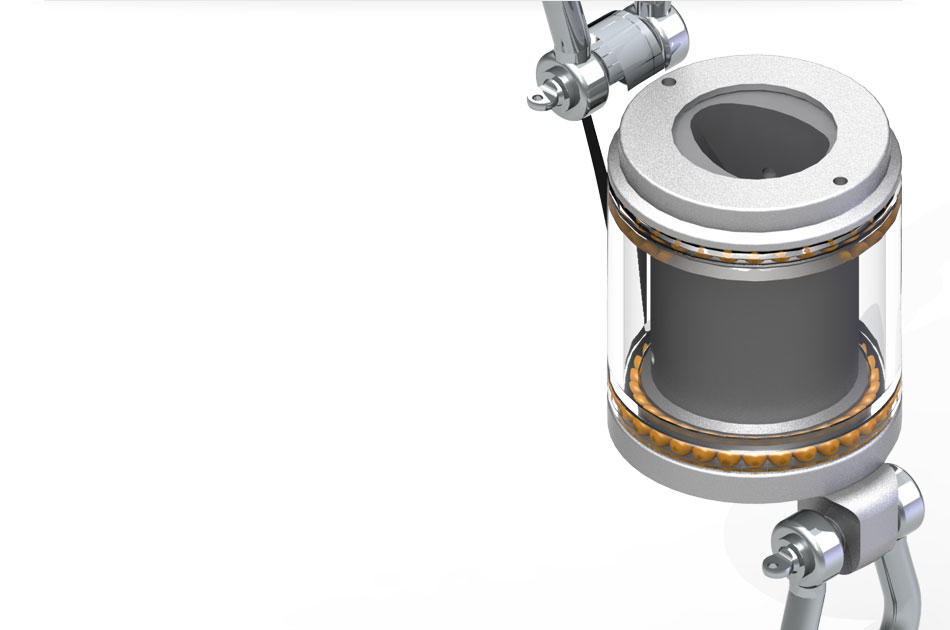

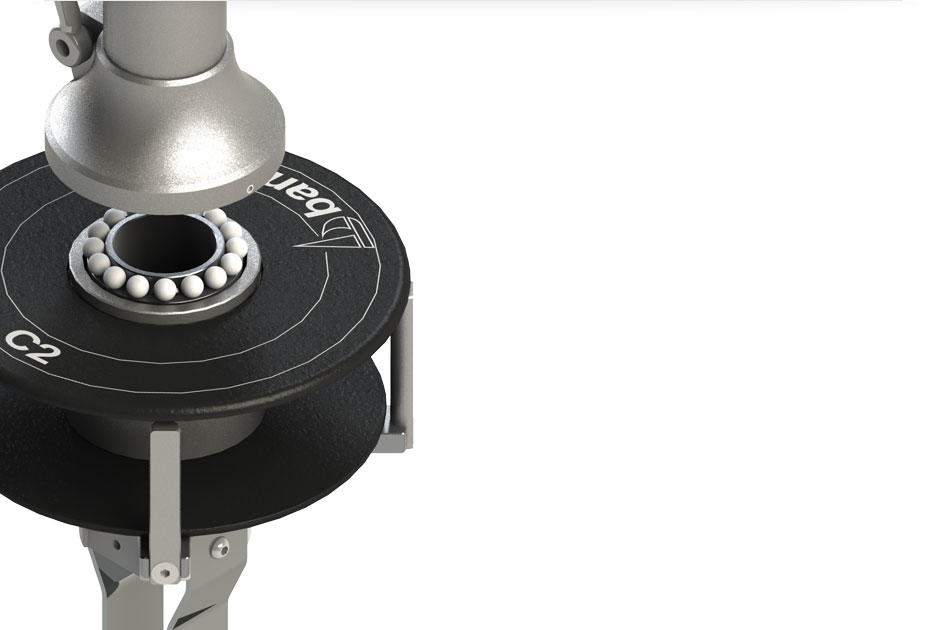

Simple and safe to use. Supplied with telescopic drum, adjuster of drum’s height and stay length. Drum does not require lubrication and needs minimal maintenance. Drum and swivel rotate on ball bearings. Corrosion free.

Max. forestay diameter
Max. forestay length 4-7 mm 4-7 mm 5-8 mm 8-10 mm 10-12 mm 12-14 mm
4,5 m C0
6,0 m C0 C0T
7,5 m C0 C0T
9,0 m C0 C0T C1
10,5 m C0 C0T C1
12,0 m C1 C2
13,5 m C1 C2
15,0 m C1 C2 C3
16,5 m C2 C3 C4
18,0 m C2 C3 C4
19,5 m C3 C4
21,0 m C3 C4
22,5 m C4

Bartels

Headsail furling and reefing systems from Bartels are really at home on classic yachts. They do not only fulfill the highest expectations for functionality but also enhance the esthetic aura these classic sailboats radiate. All Jib furlers and reefing systems from Bartels work perfectly even under the harshest conditions. Bartels offers highly customized solutions in jib furlers and reefing systems. All components are non-corrosive in saltwater.

Facnor

You will find within the three ranges of headsail furling and reefing systems (LS-LX-RX), the Facnor product adapted to your needs either cruising, ocean navigation or racing. LS-LX-RX features:

  • Rotation Torlon® ball technology (easy to use)
  • Easy access inside of drum mechanism
  • Rotating tack fitting (LX & RX)
  • Large range of sections and strong connections
  • Easy installation (thanks to the telescopic section)

LS / LX cruising range: the LX range corresponds to an "upgraded" range featuring a removable drum, a rotating tack fitting, and a stainless steel feeder.

RX racing/cruising range: The aerodynamic sections, the rotating tack fitting and the removable drum plates make the RXs well adapted for racing.

Removable drum: system used as a simple head foil Just a few minutes are needed to change the furling system into a twin groove head foil ready for racing.

Brošura

Cruising range

Max. boat length 5,5 - 7 m 6,5 - 8 m 7,5 - 9 m 8 - 11 m 9 - 12 m 10 - 13 m 11,5 - 14 m 13 - 18 m
Max. forestay diameter 5 mm 5 mm 6 mm 6 - 7 mm 8 - 10 mm 8 - 10 mm 10 - 12 mm 12 - 14 mm
MODEL LS 60 LS 70 LS 100 LS 130 LS 165 LS 180 LS 200 LS 290
LX 60 LX 70 LX 100 LX 130 LX 165 LX 180 LX 200 LX 290 LX 330

Racing

Max. boat length 6,5 - 8 m 7,5 - 8,5 m 8 - 9,5 m 9 - 11,5 m 10 - 12,5 m 11,5 - 15 m 13 - 18 m
Max. forestay diameter 5 mm 6 mm 6 - 7 mm 8 mm 8 - 10 mm 10 mm 12 mm
MODEL RX 70 RX 100 RX 130 RX 165 RX 220 RX 260 RX 300

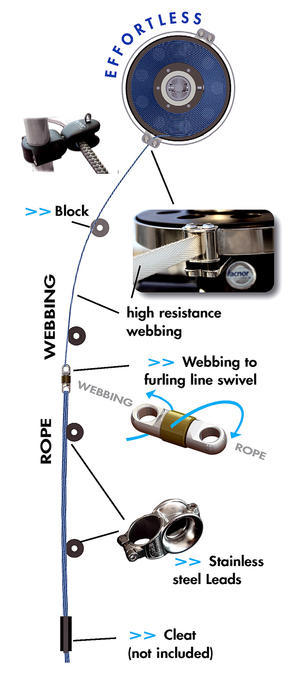

Flat deck

  • Possibility to convert the existing LS/LX/RX system by adding the FD drum
  • Thanks to the low profile drum, offers additional Genoa luff length
  • Two types of sections: elliptical or rounded
  • Internal turnbuckle fitting
  • Webbing guide exit eliminates overrides as the webbing lays flat inside the drum
  • Webbing highly resistant to UV and stretching

Brošura

CRUISING RANGE

Max. boat length 5,5 - 8 m 7,5 - 11 m 9 - 13 m 11,5 - 18 m
Max. forestay diameter 5 mm 6 - 7 mm 8 - 10 mm 12 - 14 mm
Model FD 90 FD 170 FD 210 FD 280
Section SX 25 SX 33 SX 39 SX 47

RACING & RACING - CRUISING RANGE

Max. boat length 5,5 - 8 m 7,5 - 11 m 9 - 13 m 11,5 - 18 m
Max. forestay diameter 5 mm 6 - 7 mm 8 - 10 mm 12 - 14 mm
Model fd 90 fd 170 fd 210 fd 280
Section SX 25 SX 33 SX 39 SX 47

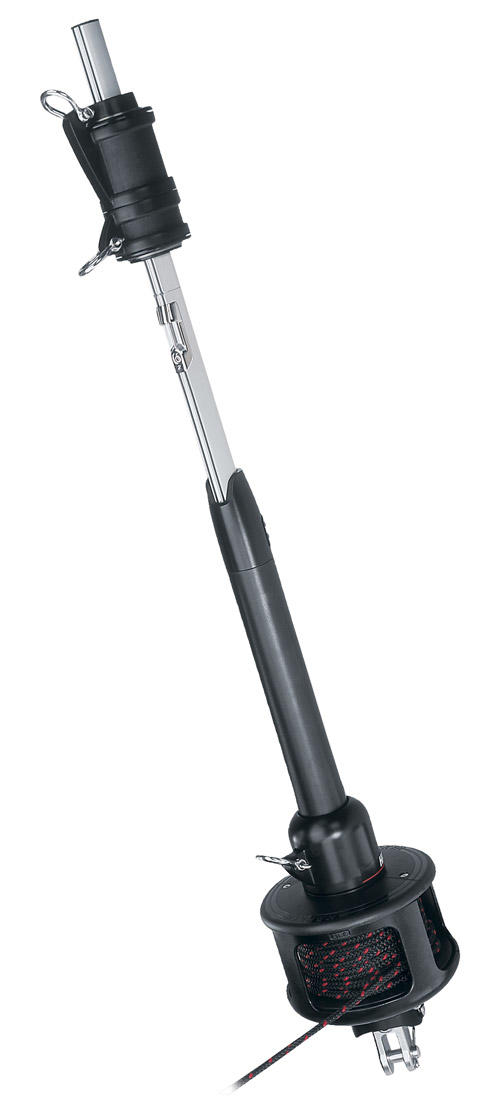

Harken

Harken MKIV furling systems are strong, lightweight and aerodynamic, with the performance and features Harken® is known for. Independent halyard and tack swivels furl sail center before head and tack for improved sail shape when reefed. HARKEN MKIV features:

  • Halyard swivel turns freely
  • Strong foil joints
  • Easy to assemble foils
  • Drum installs over existing turnbuckle
  • Stainless steel feeder for single handed hoist
  • Removable split drum: line guard and spool come off easily for racing
  • Double foil grooves for racing for fast hoists and sail changes

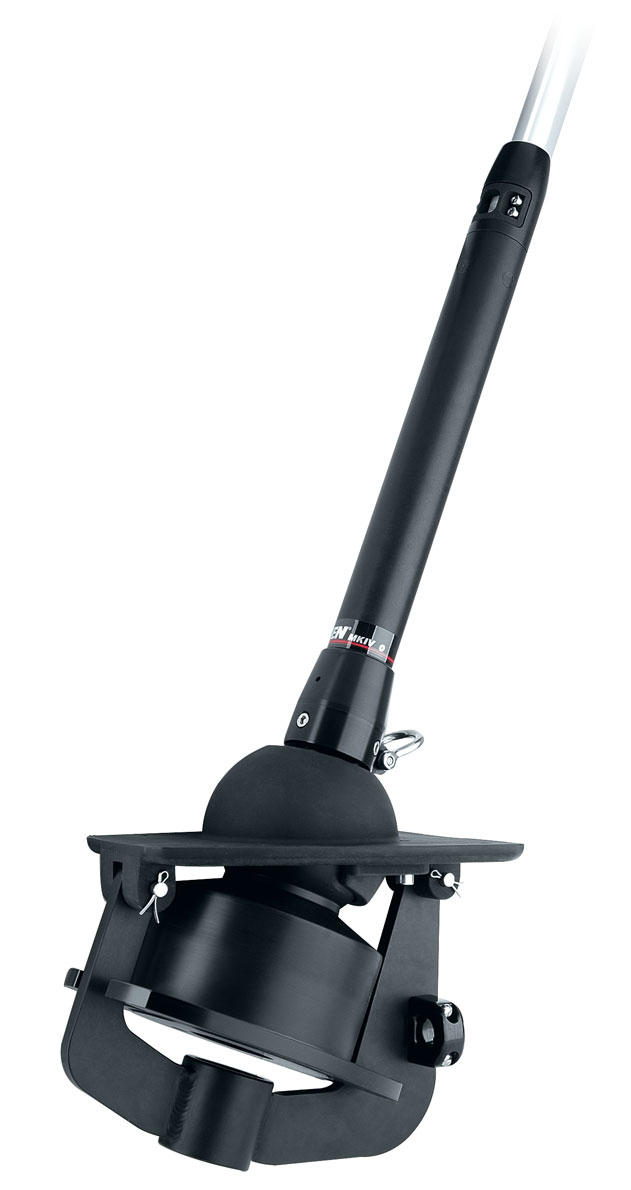

Harken’s MKIV Underdeck Furling is the perfect solution for performance racers and cruisers who want an aerodynamic system with a minimal amount of equipment above deck. The drum is located beneath the deck, lowering the tack height for maximized sail area.

Model Boat length Wire diameter
MKIV 0 6,5 - 9,1 m 4 - 6 mm
MKIV 1 8,3 - 11 m 6 - 8 mm
MKIV 2 10,6 - 14,2 m 8 - 10 mm
MKIV 3 13,7 - 18,3 m 11 - 12 mm
MKIV 4 19,8 - 24,4 m 12 - 16 mm

Underdeck

Model Boat length Wire diameter
MKIV UD 0 6,7 - 9,1 m 5 - 6 mm
MKIV UD 1 8,3 - 11 m 6 - 8 mm
MKIV UD 2 10,6 - 14,2 m 8 - 10 mm
MKIV UD 3 13,7 - 18,3 m 11 - 12 mm

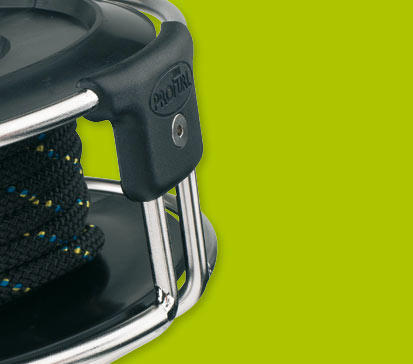

Profurl

Profurl offers a wide range of manual furling systems. Whatever your sailing program (cruising, racing, off shore), the size of your boat, the Profurl systems will meet your requirements. Find out our 3 ranges of manual furling systems:

  • The cruising range: with 10 models, the Cruising range offers robustness and safety, it is dedicated to boats from 5 to 26m.
  • The racing range: these models have been especially designed for the racing-cruising sailors and are dedicated to boats from 6 to 20m

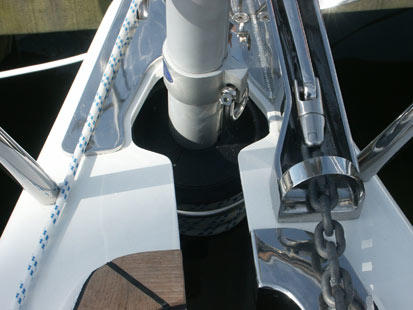

  • Below the deck range: aesthetic solution enabling easier operations with the anchor

The Profurl features:

  • A wide range of reefing systems
  • One forestay diameter for one furling system
  • Several fitting options
  • Maintenance free ball bearings
  • Insulation of the different materials
  • Light and robust extrusions

Cruising range

Max. forestay diameter
Max. boat length 5 mm 6,35 mm 7 mm 8 mm 10 mm 12,7 mm 14,3 mm 16 mm 19 mm
5 - 7 m C260
7 - 9 m C290
9,50 m C290 C320
10 m C320
11 m C320 C350
12 m C350
13 m C350 C420
14 m C420 C430 C480
16 m C430 C480 C520
18 m C480 C520 C530
26+ m C530

C700 (on demand): for boat lengths 18+ m and maximum forestay diameter 25,4 mm

C290 - C430 also available as underdeck

Racing range

Max. forestay diameter
Max. boat length 6,35 mm 8 mm 10 mm 11,1 mm 12,7 mm
6 m R250
7 m R250
8 m R250
9 m R250 R350
10 m R350
11 m R350 R420
12 m R350 R420
13 m R420 R430
14 m R420 R430 R480
15 m R430 R480
16 m R430 R480
19 m R480

R250 - R430 also available as underdeck

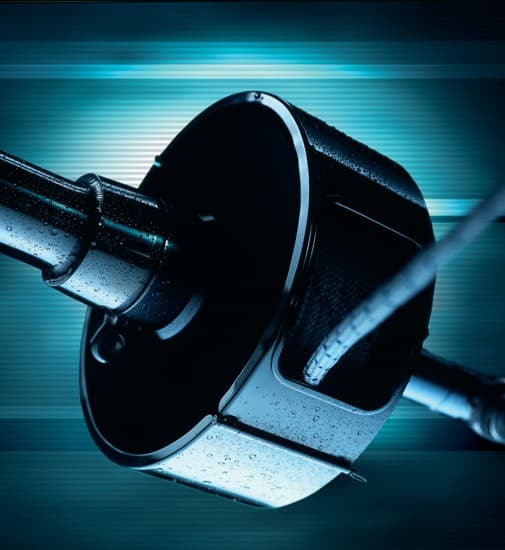

Reckmann - RS 2000

Very reliable manual reefing system, which is distinguished by an elegant design as well as a maximum of functionality. Available in five system sizes, represents the third generation development of manual reefing systems for yachts of 30 to 90 foot in length. The one-piece aluminium extruded profiles feature higher torsion resistance combined with a weight saving of up to 25%. In designing this non-corrosive and virtually maintenance-free system, particular emphasis was placed on simple assembly.

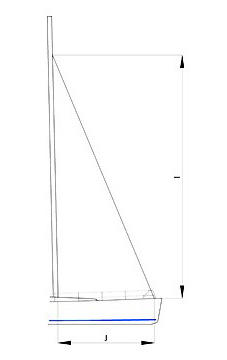

Model "Forestay length (m) Wire Ø Rod Ø I+J (m) Jmax (m) Boat length (ft)
R10 9 do 15 6, 7, 8 8, 10, 12 12 do 18 4,2 30 do 37
R20 12 do 18 8, 10 12, 17 17 do 23 5,5 35 do 44
R30 15 do 24 10,12 17, 22, 30 21 do 31 6,5 45 do 56
R40 21 do 30 12,14 30, 40, 48 27 do 38 8,5 54 do 76
R50 24 do 36 16,19 48, 60, 76 35 do 45 9,8 9,8
Model "Forestay length (m) Wire Ø Rod Ø I+J (m) Jmax (m) Boat length (ft)
R10 9 do 15 6, 7, 8 8, 10, 12 12 do 18 4,2
R20 12 do 18 8, 10 12, 17 17 do 23 5,5
R30 15 do 24 10,12 17, 22, 30 21 do 31 6,5
R40 21 do 30 12,14 30, 40, 48 27 do 38 8,5
R50 24 do 36 16,19 48, 60, 76 35 do 45 9,8

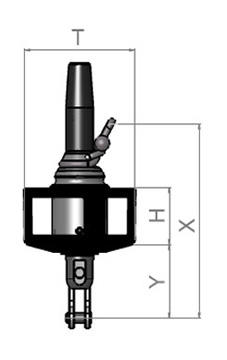

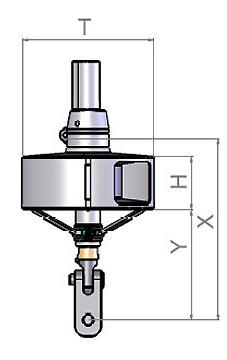

Model X (mm) Y (mm) T (mm) H (mm)
R10 260 160 180 73
R20 276 166 198 80
R30 311 - 341 193 - 223 222 90
R40 403 - 435 258 - 290 261 108
R50 403 - 435 258 - 290 310 120

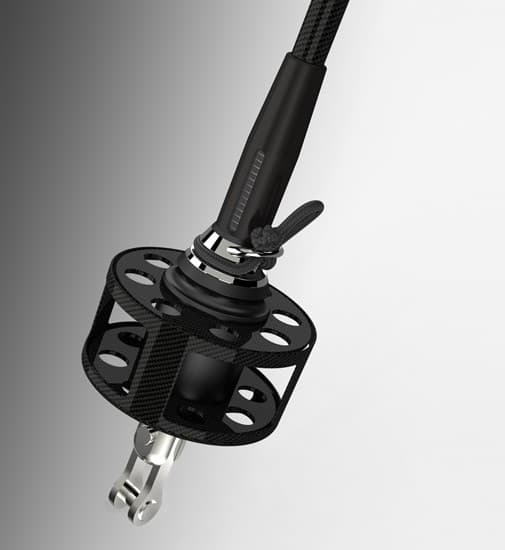

Reckmann - RS 3000

High performance manual furling gear. The furler is equipped with a 60mm adjuster accessible from the top of the drum. Adjusting the forestay does not change the tack swivel height. The sail is tacked with Dyneema loop shackles. The foil sections are made out of carbon to reduce the top weight. The RS3000 is standard on the Swan 42 NYYC boats.

Model X (mm) Y (mm) T (mm) H (mm) Weight (kg)
RS 3000 291 113 172 85 4,5

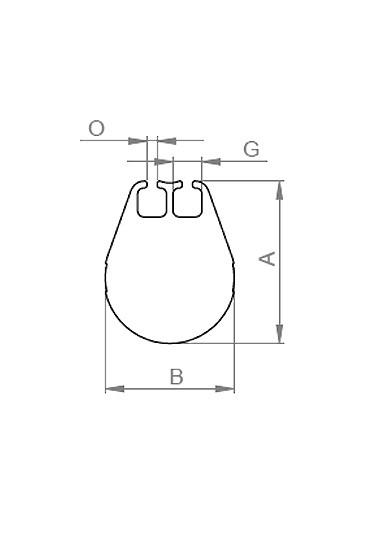

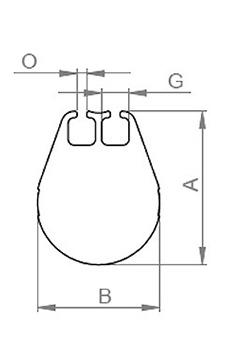

Model G (mm) O (mm) A (mm) B (mm)
S2 7,2 2,8 38,5 29
S2,5 7,2 2,8 42 32

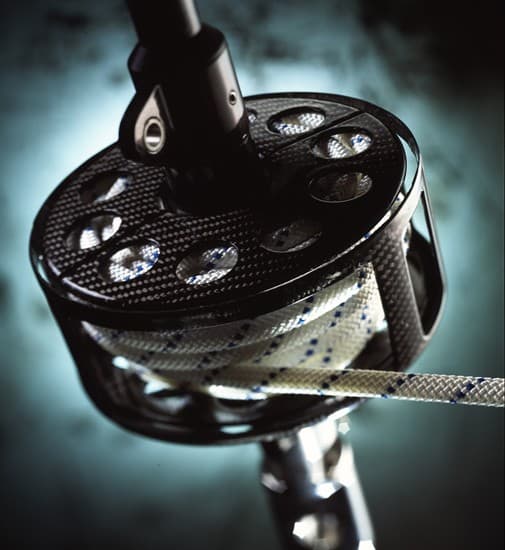

Reckmann - RC30 / RC40

For sailors, who up to now have operated a Tuff Luff racing forestay system in addition to their standard roller reefing system in order to satisfy their racing ambitions. They are designed for yachts from approx. 42 to 68 feet with forestay lengths up to about 30 metres. Entire carbon profile is so light that it weighs even less than the corresponding racing profile forestay system. The system’s entire weight for a 45-foot boat is only 9.5 kg with drum for cruising and 7.3 kg in racing mode. The RC 30 and RC 40 are hence very light reefing systems for cruising and you no longer require any other system for racing. Prior to the race, both halves of the carbon drum are removed with a few manual turns in order to tack the sail on deck.

Model X (mm) Y (mm) T (mm) H (mm) Weight (kg)
RS 3000 291 113 172 85 4,5

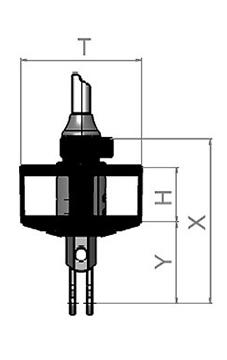

Model X (mm) Y (mm) T (mm) H (mm)
RC30 245 103 192 80
RC40 310 118 230 137

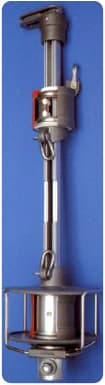

Z Spars

Model Z 456 Z 780 Z 1012
Standard Long Standard Long Standard Long
Ø Forestay 4-6 mm 4-6 mm 7-8 mm 7-8 mm 10-12 mm 10-12 mm
A 60 mm 60 mm 60 mm 60 mm 60 mm 60 mm
B 50 mm 50 mm 50 mm 50 mm 60 mm 60 mm
C 50 mm 50 mm 50 mm 50 mm 50 mm 50 mm
D 170 mm 170 mm 200 mm 200 mm 230 mm 230 mm
E 330 mm 330 mm 360 mm 360 mm 500 mm 500 mm
F 165 mm 165 mm 250 mm 250 mm 300 mm 300 mm
G 195 mm 405 mm 235 mm 515 mm 320 mm 640 mm
H 95 mm 95 mm 95 mm 95 mm 110 mm 110 mm
Ø Rope 8 mm 8 mm 10 mm 10 mm 12 mm 12 mm
Profil L= 26 mm L= 26 mm L= 36 mm L= 36mm L= 45mm L= 45mm
I= 24 mm I= 24 mm I= 29 mm I= 29 mm I= 37mm I= 37mm
Alloy 6005 T6 6005 T6 6005 T6 6005 T6 6005 T6 6005 T6
Ø Boltrope 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm
Ø Drum 130 mm 130 mm 180 mm 180 mm 220 mm 220 mm
Ø Axis 8-10 mm 8-10 mm 12 mm 12 mm 14-18 mm 14-18 mm

Certified Service Center

We are a part of the network members inside BSI Group as a Certified Service Center

As a service center, we follow BSI’s recommendations and guidelines. We are fully backed by the factory and we only use BSI supplied, or approved, materials when doing the refits for new or previously supplied BSI projects. This ensures complete visibility and history of all materials installed in the rigging package.
